HAND 3-WAY VALVE DF 3/8" - 35LIT
Article code:
10223
OEM:
9990000001583
Tax rate
22 %
Price without VAT:
19,67 EUR
Price with VAT:
24,00 EUR
Ref:
25
Usage:
The valve is used as a three-way valve. The oil flow is divided into two outlets.
Material:
Housing: cast iron, internal part hard metal
Seal: Buna N standard
Connection:

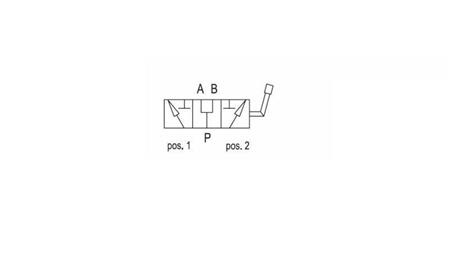

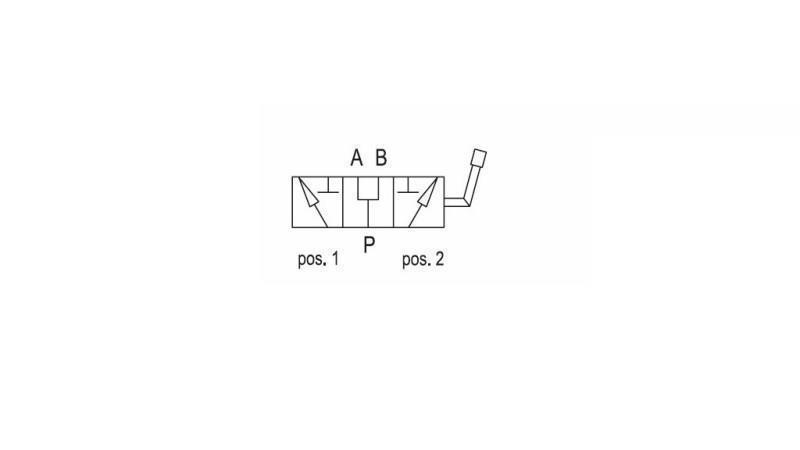

Connect 'P' to the pressure side and 'A' and 'B' to the ports where we want to divide the oil flow. When the lever is in position '1', the flow is directed to port 'A', and with the lever in position '2', the flow is directed to port 'B'. When the lever is in the center position, the ports 'P', 'A', 'B' are connected (opened center).
Supplier:
Italy
Maximum pressure:
250 bar
Return or exchange:
14 days
Product weight:
1.3 kg
Warranty:
6 months
Max. flow:
35 l/min
