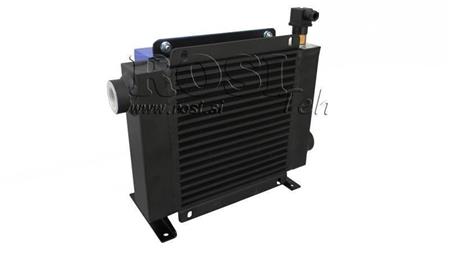

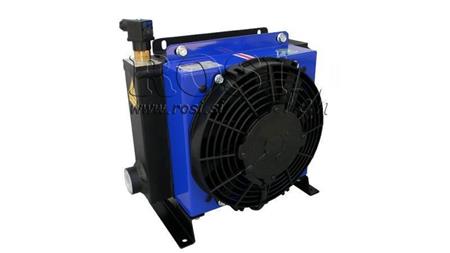

OIL HEAT EXCHANGER DC 12V HY03802 40-160 LIT
Article code:
10571
OEM:
9990000004942
Tax rate
22 %
Price without VAT:
459,02 EUR
Price with VAT:
560,00 EUR
Ref:
4

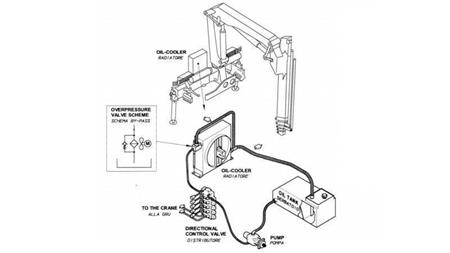

Standard compact 'cross-flow' heat exchangers
are used for cooling hydraulic systems. They are designed for installation on industrial machines, tractor attachments, mobile machines, car lifts, in truck applications, etc. They can be used with DC or AC electric motors.
Radiator cores
made of aluminum alloy, are manufactured using vacuum brazed welding technology. This achieves high resistance of the selected material and reliability, ensuring the best sealing for the pressures of various hydraulic systems.
Current load:
17.6 A
Return or exchange:
14 days
air flow:
1830 m3/h
Product weight:
11.5 kg
Voltage:
12 V
noise level:
72 db(A)
thermostat on:
60°C
max. operating temp.:
120°C
external protection:
IP 65-68
start:
soft start
max. static pressure:
36 bar
for oil flow:
40-160 liters
capacity:
4.6 liters
for liquids:
oil - water / glycol - Diesel
power:
211 W
fan:
305 mm
