New Products

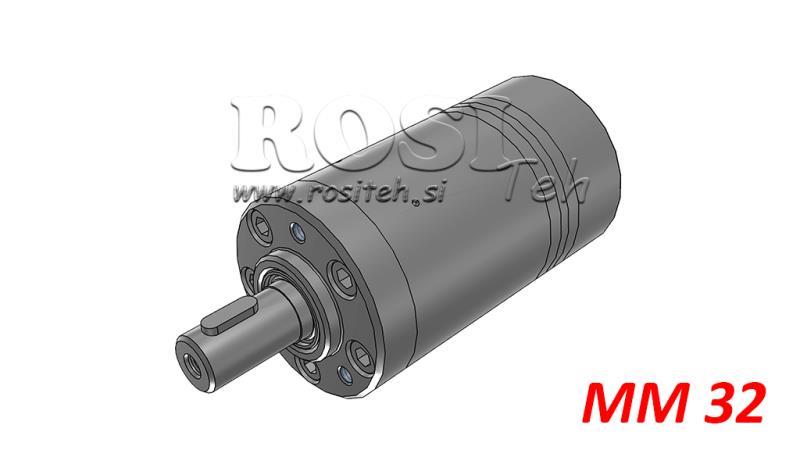

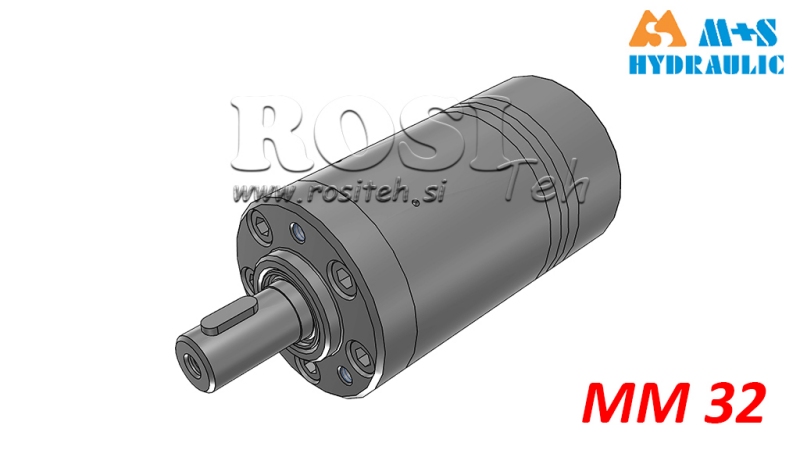

    HYDRAULIC MOTOR MM 32
    HYDRAULIC MOTOR MM 32
    HYDRAULIC MOTOR MM 32
    HYDRAULIC MOTOR MM 32
    HYDROMOTOR MM 32
    HYDROMOTOR MM 32 - FUNCTIONAL DIAGRAM
    HYDRAULIC MOTOR MM 32
    HYDRAULIC MOTOR MM 32
    HYDRAULIC MOTOR MM 32
    HYDRAULIC MOTOR MM 32
    HYDROMOTOR MM 32
    HYDROMOTOR MM 32 - FUNCTIONAL DIAGRAM

    HYDRAULIC MOTOR MM 32

    Article code:
    10833
    OEM:
    9990000007523
    Tax rate
    22 %
    Price without VAT:
    120,49 €
    Price with VAT:
    147,00 €
    Ref:
    9
    ADD TO CART

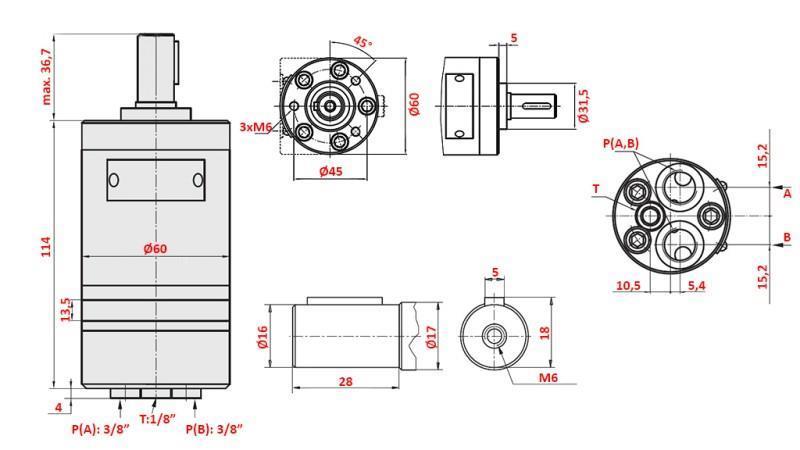

    L

    L1

    [mm]

    MM 8

    104

    3,5

    MM 12,5

    106

    5,5

    MM 20

    109

    8,5

    MM 32

    114

    13,5

    MM 40

    117,5

    17

    MM 50

    121,5

    21



    DIAGRAM 'MM 32'





    Supplier:
    Turkey
    Oil flow:
    constant 20 L/min, max. 25 L/min
    Return or exchange:
    14 days
    torque:
    constant 4 Nm, with interruptions 5.7 Nm, max. 6.4 Nm
    cm/revolutions:
    32
    connection thread:
    3/8"
    Revolutions:
    constant 630 rpm, with interruptions 790 rpm
    Product weight:
    2.2 kg
    Warranty:
    6 months
    pressure:
    constant 105 bar, with interruptions 140 bar, max. 200 bar
    power:
    constant 2.4 kW, max. 3.2 kW
