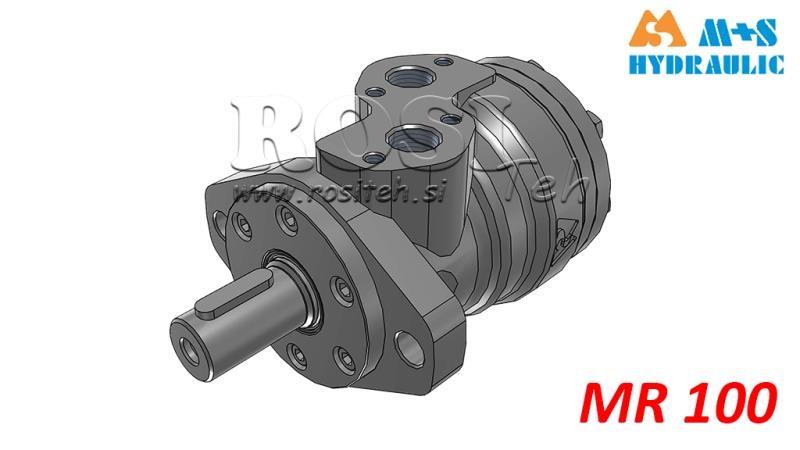

HYDRAULIC MOTOR MR 100
Article code:
11250
OEM:
9990000016976
Tax rate
22 %
Price without VAT:
163,93 EUR
Price with VAT:
200,00 EUR
Ref:
7
| Technical data | |
| Supplier: | Bulgaria |
| Return or exchange: | 14 days |
| Warranty: | 6 months |
| Shaft diameter: | 25 mm |
| Oil flow: | constant flow 60 L/min, intermittent 75 L/min |
| Connection thread: | 1/2" |
| Temperature range: | from -40°C to 140 °C |
| Torque: | constant torque 24 daNm, intermittent 28 daNm, max. 32 daNm |
| Revolutions: | constant revolutions 600 rpm, intermittent 750 rpm |
| Pressure drop: | constant pressure 175 bar, intermittent 200 bar, max. 225 bar |
| Inlet pressure: | constant pressure 175 bar, intermittent 200 bar, max. 225 bar |
| Power: | constant power 13 kW, intermittent 15 kW |
| cm³/revolution: | 99,8 |
| Weight: | 7,3 kg |
DESCRIPTION – HYDRAULIC MOTORS MR
MR type hydraulic motors are compact, robust and reliable with orbital design. Due to their simple construction and high efficiency, they are suitable for a wide range of applications.
They are characterized by:
- high displacement at low speeds,
- smooth and quiet operation,
- long service life thanks to high-quality materials and seals,
- possibility of operation in both directions of rotation,
- low oil consumption relative to output power.
They are mainly used in agricultural, forestry and construction machinery, as well as in industry where reliable and efficient conversion of hydraulic energy into mechanical motion is required.

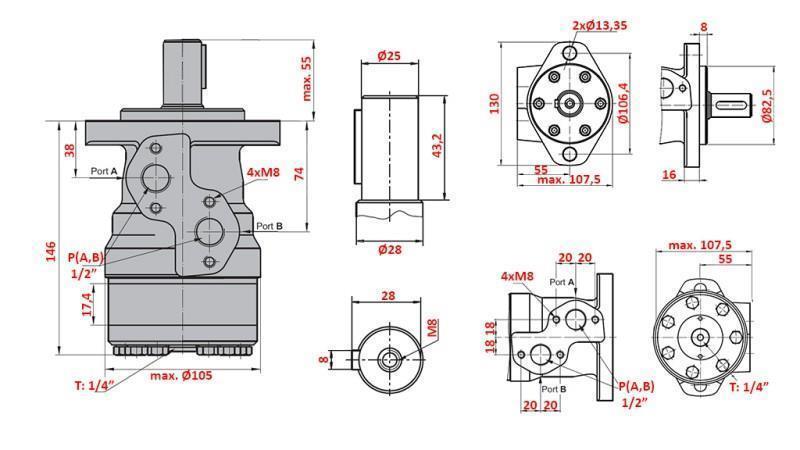

| L | L1 | |
| (mm) | (mm) | |
| MR 50 | 135,5 | 6,67 |
| MR 80 | 139,5 | 10,67 |
| MR 100 | 142 | 13,33 |
| MR 125 | 145,5 | 16,67 |
| MR 160 | 150 | 21,33 |
| MR 200 | 155,5 | 26,67 |
| MR 250 | 162 | 33,33 |
| MR 315 | 171,5 | 42,67 |
| MR 400 | 182 | 53,33 |
